Product Description

The elliptical head is the most common type of heads. It can be seen in various equipment such as pressure vessels, storage tanks, heat exchangers, etc. It has relatively high pressure tolerance and low molding difficulty.

Specification

Ellipsoidal heads, also known as elliptical heads or dished ends, are a common type of head used for pressure vessels, tanks, reactors, and separators in various industries such as chemical processing, oil & gas, power generation, food & beverage, and pharmaceuticals.

Standard (or "Standard") 2:1 Ellipsoidal Head: The most widely used design. Its internal shape approximates an ellipse with a 2:1 ratio. It offers a good balance of strength, cost, and forming ease. Standards like ASME Section VIII, Div. 1 provide design rules and pressure ratings。

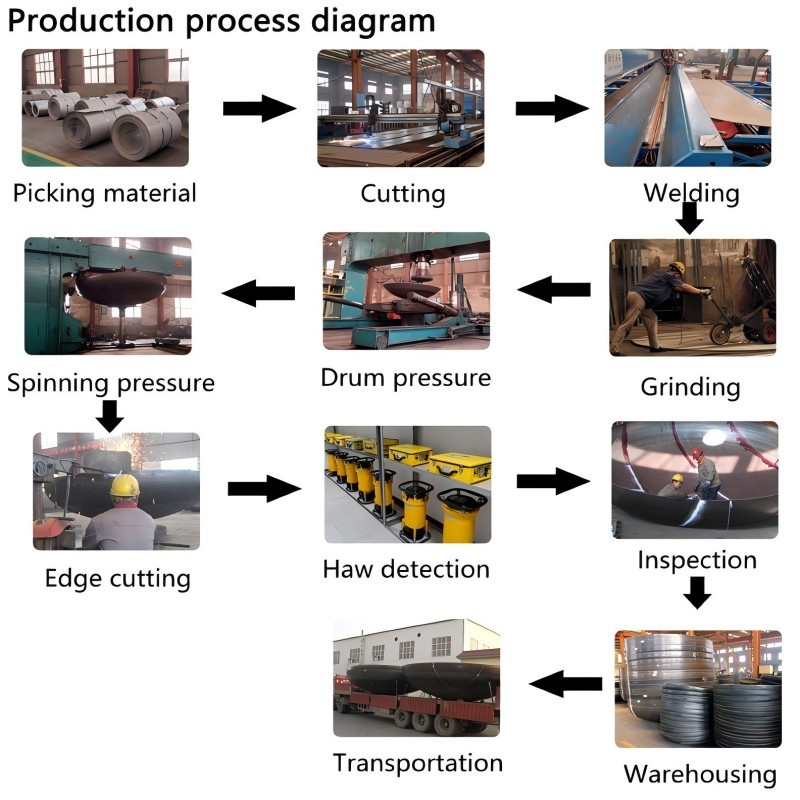

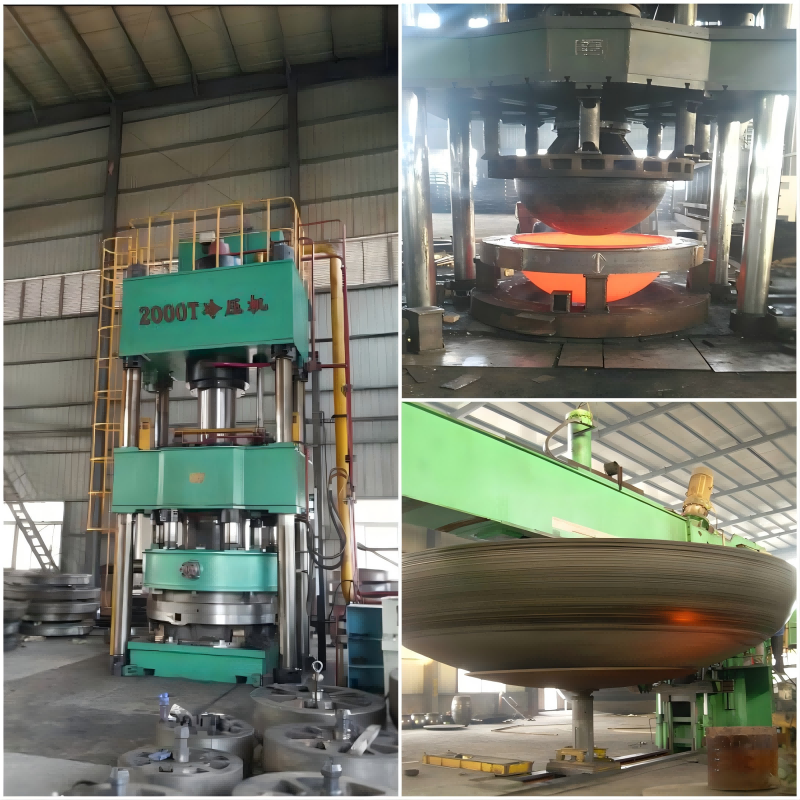

Our Manufacturing Process

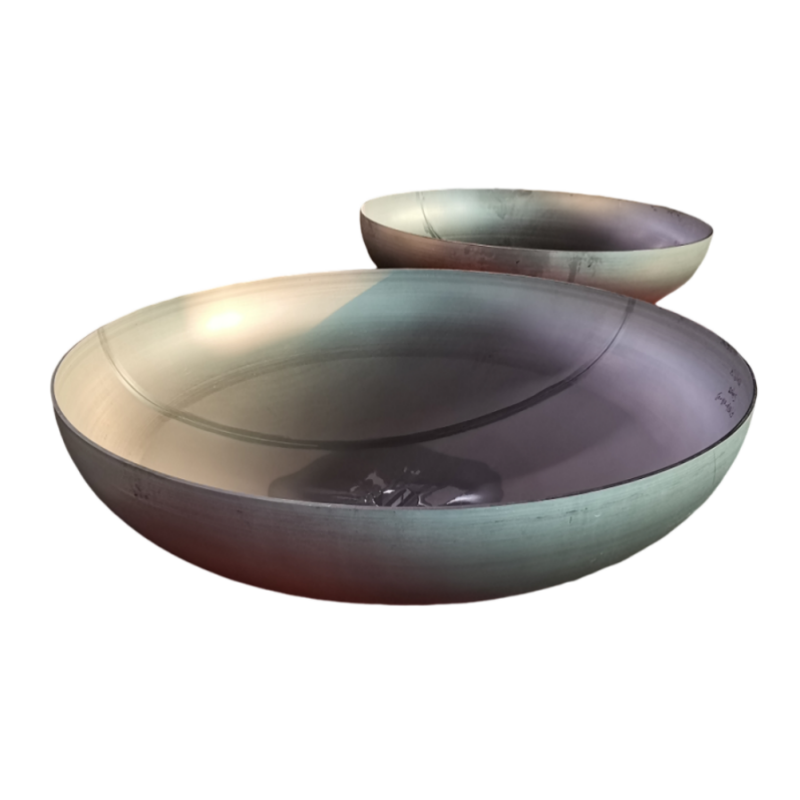

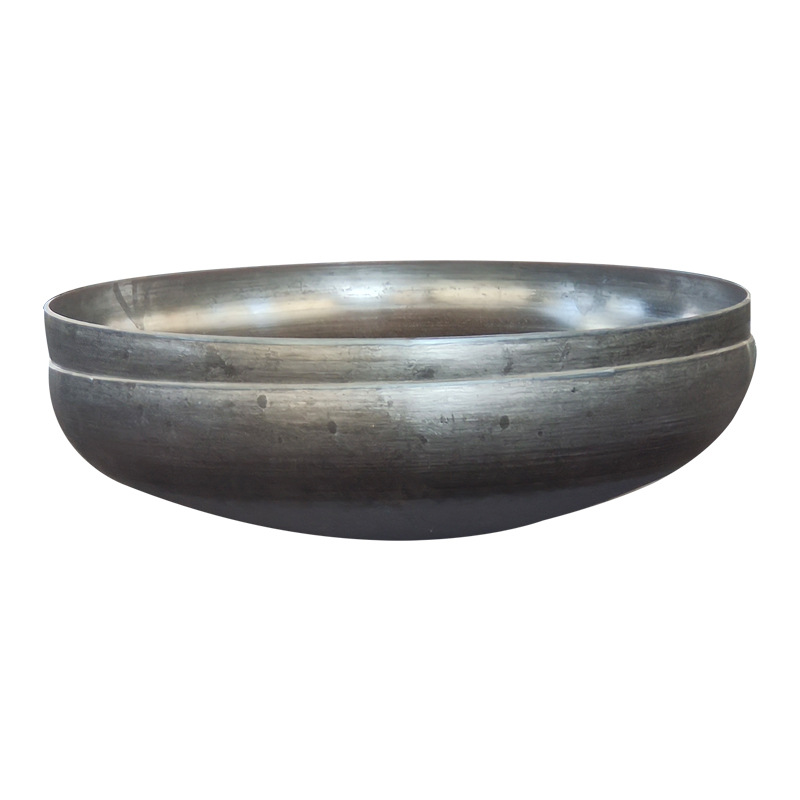

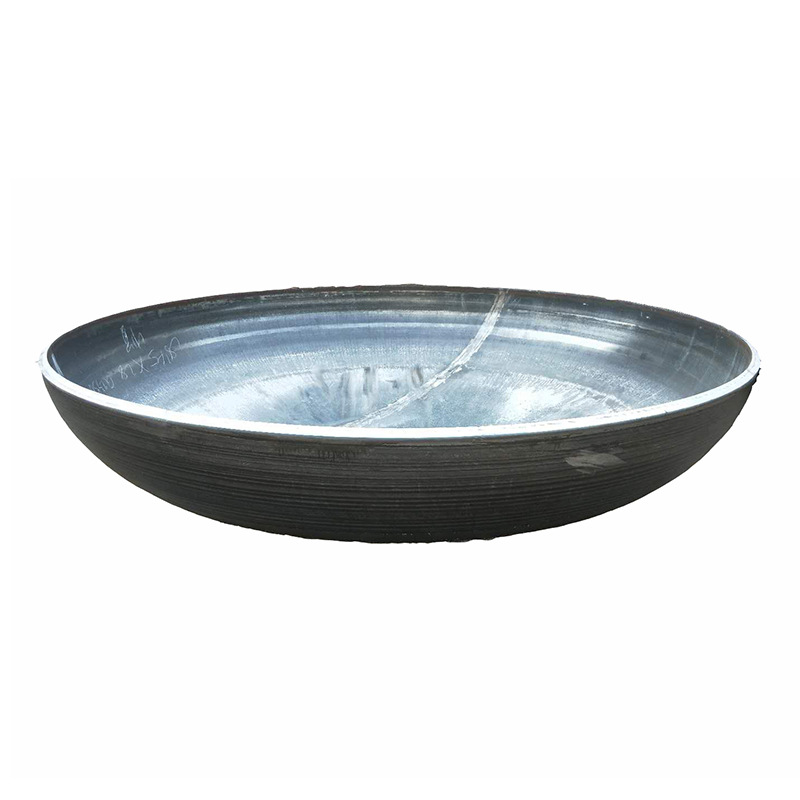

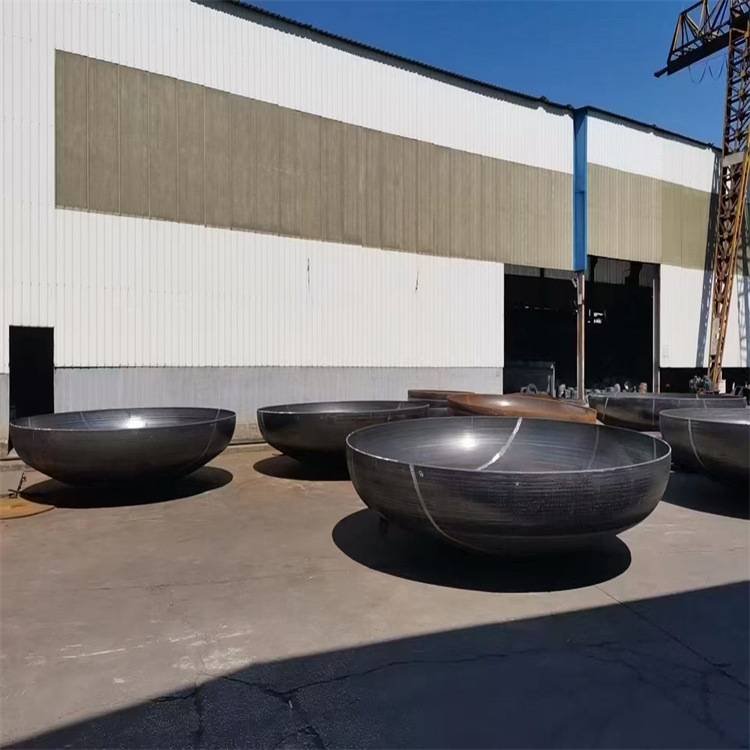

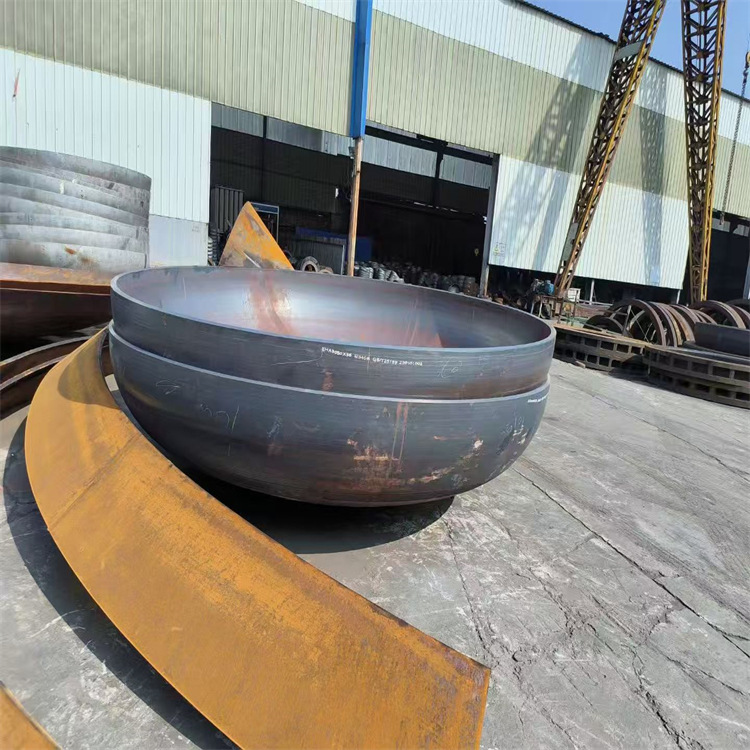

Product Image

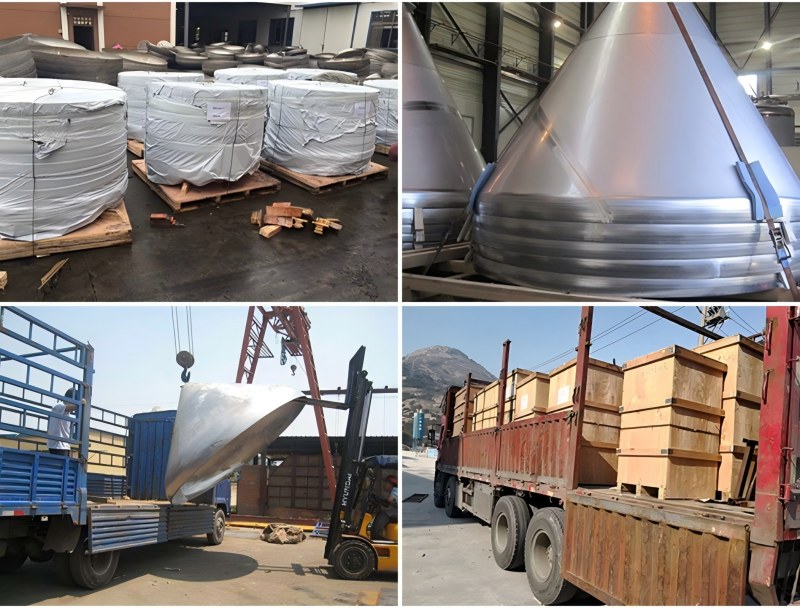

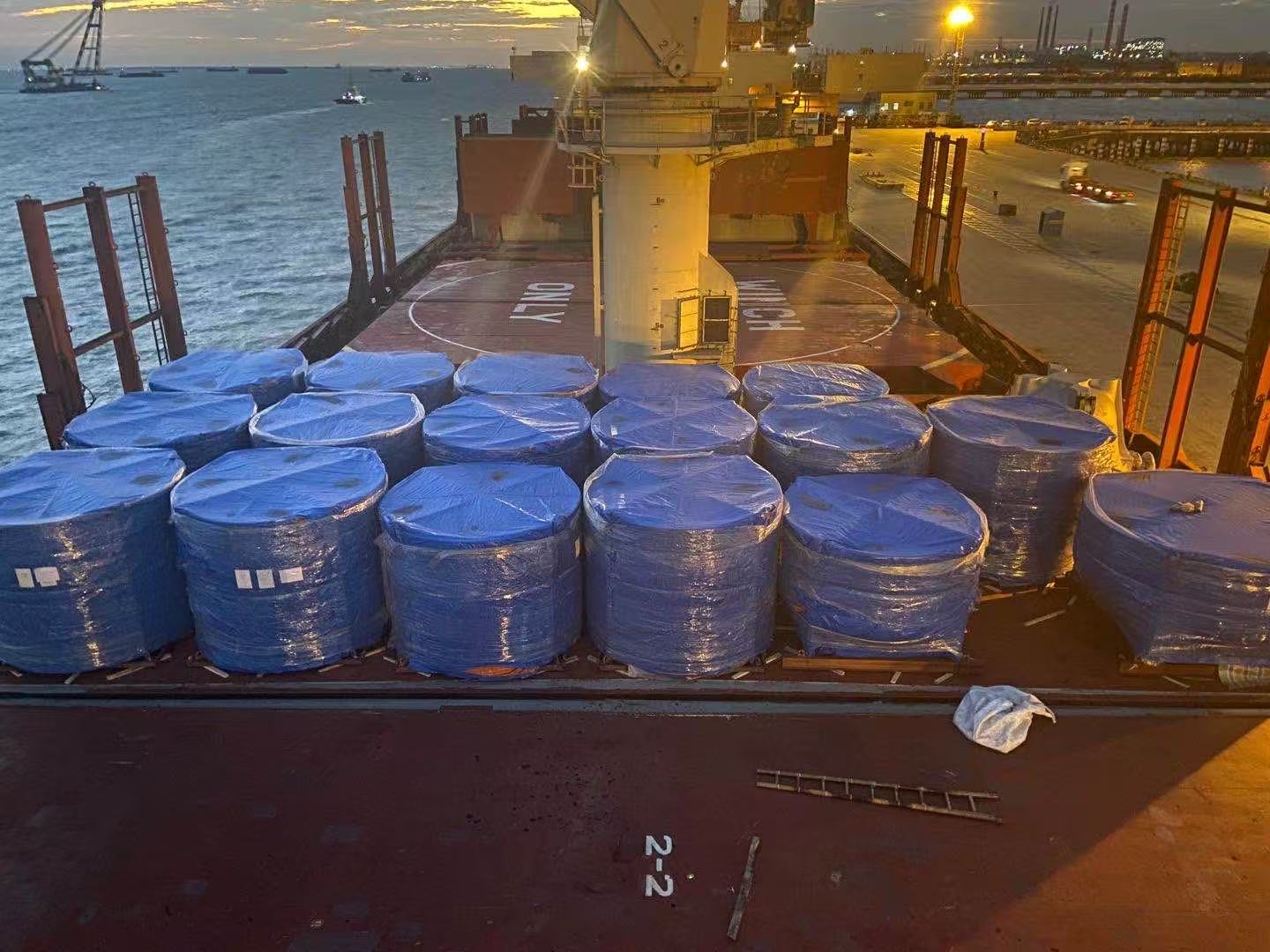

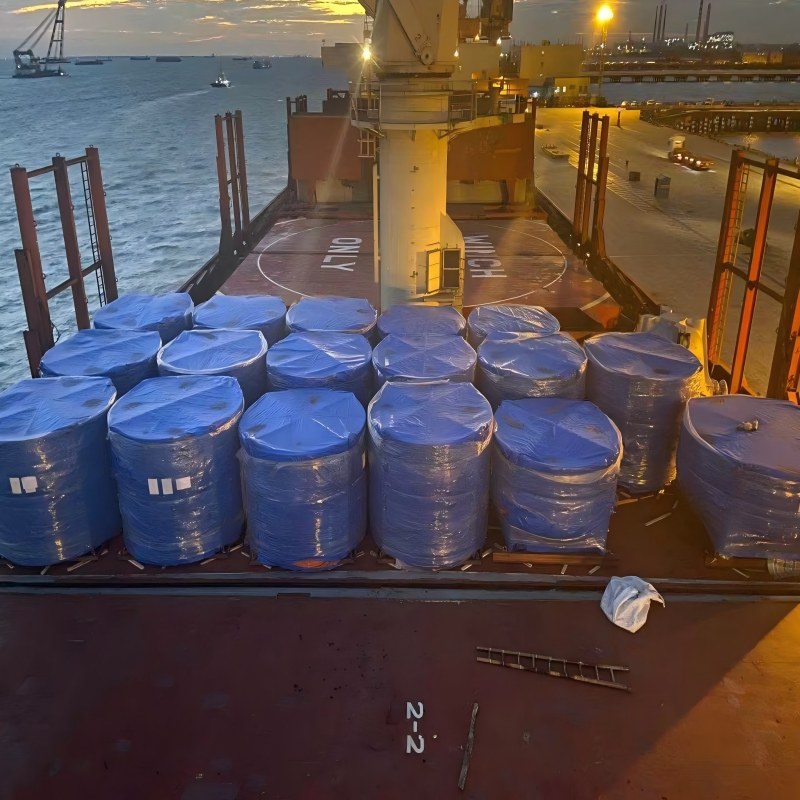

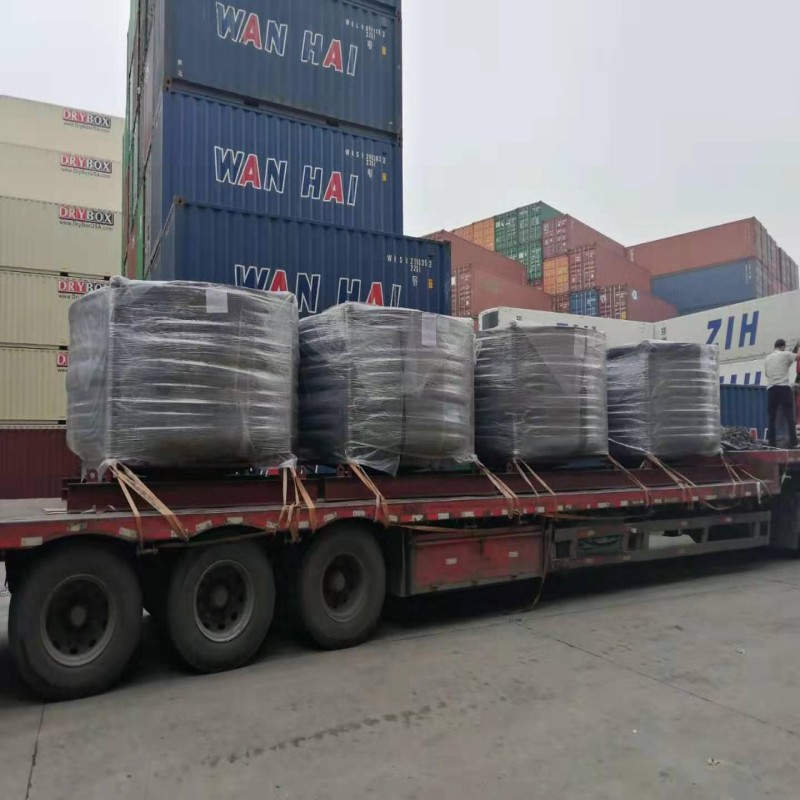

Packing & Delivery

Company Profile

Shandong Meihuayuan Industry Co.,Ltd, a premier metal products manufacturing facility dedicated to delivering top-quality solutions for a diverse range of industries. The company can manufacture oval, dish, hemispherical, spherical (no straight edges), conical, pipe caps, expansion joints, flat-bottomed heads and various materials with diameters from 25mm to 11000mm and thicknesses from 1.0mm to 80mm. Special material and special-shaped head. The products are sold all over the worlds and are widely used in petrochemical,electric power, energy, machinery, pharmaceutical, food, environmental protection, water treatment and other industries.

It has one press, one 1.8-meter sphere spinning machine, two 3-meter spinning machines, multiple automatic welding and cutting equipment, and more than 60 supporting annealing furnaces, radiographic flaw detectors, physical and chemical testing and other auxiliary equipment ensuring that we meet the unique requirements of each client with precision and efficiency.. It is currently Top three in the country professional head manufacturers in China with a relatively complete range of equipment.

FAQ:

Q: What information should I provide when making an inquiry?

A: If you have production drawings, we will strictly follow them. If not, you can provide the product details, such as: Material ,Type of head (e.g., elliptical, hemispherical, dished, flat, etc.)Special tolerances or requirements
If needed, we can create drawings based on your specifications, and you can confirm the final product design before production.

Q: What information should I provide when making an inquiry?

A: If you have production drawings, we will strictly follow them. If not, you can provide the product details, such as: Material ,Type of head (e.g., elliptical, hemispherical, dished, flat, etc.)Special tolerances or requirements
If needed, we can create drawings based on your specifications, and you can confirm the final product design before production.

Q: What surface treatments are available for the product?
A:For carbon steel products: We perform sandblasting to remove surface scales.
For stainless steel products: We use acid treatment to eliminate surface oil and impurities.

Q: How do you ensure product quality?
A: Our production staff are certified by the national quality department and have extensive experience in production and design. Additionally, all welds undergo X-ray inspections to ensure they are free of defects.

Q: Can you help us source related products?
A: Yes, our company works with several nearby ancillary businesses, including suppliers of flanges, boilers, and oil refining equipment. We can help you source the highest quality products at competitive prices.
