Large Diameter 5500mm 3000mm AS516GR70 Elliptical Dish Head for Pressure Vessel

Large Diameter 5500mm 3000mm AS516GR70 Elliptical Dish Head for Pressure Vessel

The Elliptical head is the most common type of heads. It can be seen in various equipment such as pressure vessels, storage tanks, heat exchangers, Planatery Mixer Machine etc. It has relatively high pressure tolerance and low molding difficulty.

Specification

Elliptical head:

Elliptical head (also called hemispherical tank heads or hemispherical dish ends) is widely applied to make pressure tanks to storage liquids and gases. The hemispherical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. Hemispherical is the ideal shape for development of hemispherical dish end, because the pressure in the vessel is divided equally across the surface of the head. The radius (Ri) of the head equals the radius of the cylindrical part of the vessel. This type of hemispherical tank heads or hemispherical dish ends are made in most popular sizes and thicknesses.

The stainless tank head is one of the key pressure-bearing components and core structures of a planetary mixer.  It is not only an important part of the pot body but also a crucial element in ensuring the safe, efficient, and stable operation of the equipment under mixing, heating/cooling, and vacuum conditions. Its design, materials, and manufacturing process directly affect the overall performance, service life, and hygienic safety standards of the product.

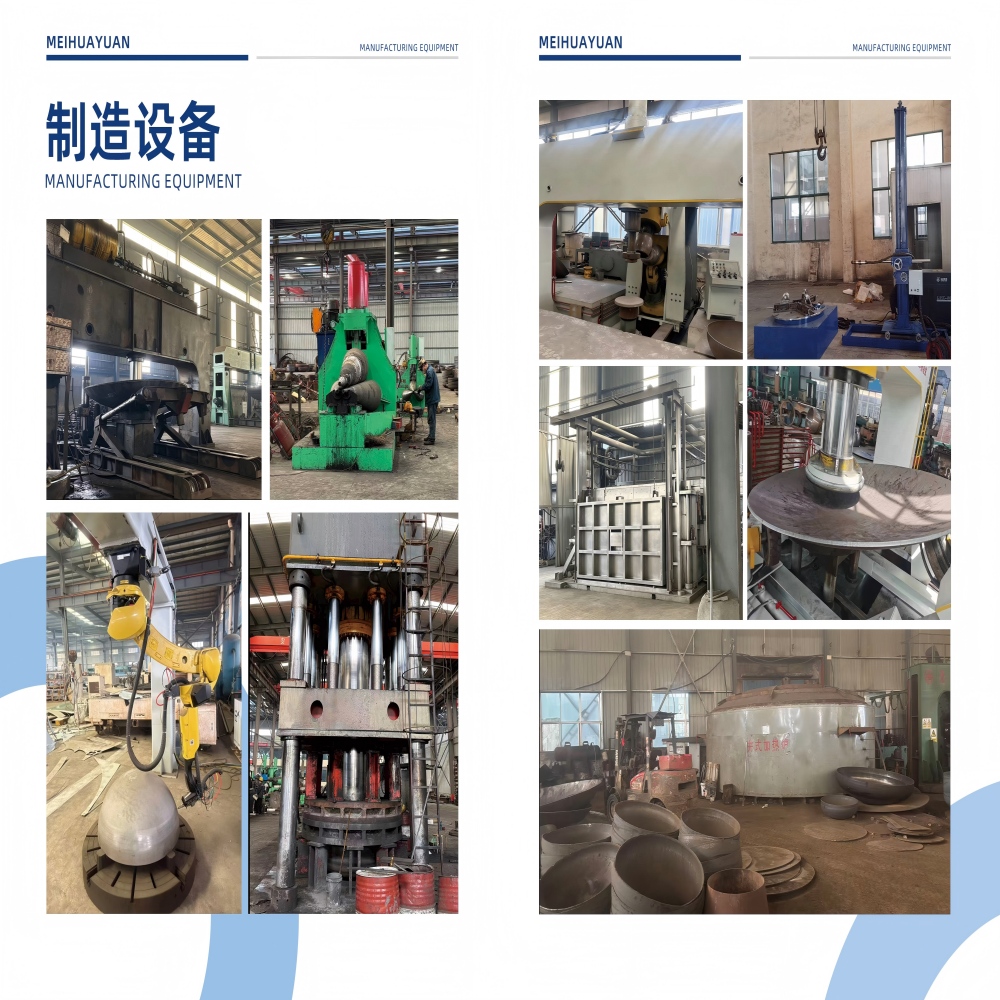

Production Equipment:

Our Manufacturing Process

Product Image

Packing & Delivery

Company Profile

Shandong Meihuayuan Industry Co.,Ltd, a premier metal products manufacturing facility dedicated to delivering top-quality solutions for a diverse range of industries. The company can manufacture oval, dish, hemispherical, spherical (no straight edges), conical, pipe caps, expansion joints, flat-bottomed heads and various materials with diameters from 25mm to 11000mm and thicknesses from 1.0mm to 80mm. Special material and special-shaped head. The products are sold all over the worlds and are widely used in petrochemical,electric power, energy, machinery, pharmaceutical, food, environmental protection, water treatment and other industries.

It has one press, one 1.8-meter sphere spinning machine, two 3-meter spinning machines, multiple automatic welding and cutting equipment, and more than 60 supporting annealing furnaces, radiographic flaw detectors, physical and chemical testing and other auxiliary equipment ensuring that we meet the unique requirements of each client with precision and efficiency.. It is currently Top three in the country professional head manufacturers in China with a relatively complete range of equipment.

FAQ:

Q: What information should I provide when making an inquiry?

A: If you have production drawings, we will strictly follow them. If not, you can provide the product details, such as: Material ,Type of head (e.g., elliptical, hemispherical, dished, flat, etc.)Special tolerances or requirements
If needed, we can create drawings based on your specifications, and you can confirm the final product design before production.

Q: What information should I provide when making an inquiry?

A: If you have production drawings, we will strictly follow them. If not, you can provide the product details, such as: Material ,Type of head (e.g., elliptical, hemispherical, dished, flat, etc.)Special tolerances or requirements
If needed, we can create drawings based on your specifications, and you can confirm the final product design before production.

Q: What surface treatments are available for the product?
A:For carbon steel products: We perform sandblasting to remove surface scales.
For stainless steel products: We use acid treatment to eliminate surface oil and impurities.

Q: How do you ensure product quality?
A: Our production staff are certified by the national quality department and have extensive experience in production and design. Additionally, all welds undergo X-ray inspections to ensure they are free of defects.

Q: Can you help us source related products?
A: Yes, our company works with several nearby ancillary businesses, including suppliers of flanges, boilers, and oil refining equipment. We can help you source the highest quality products at competitive prices.
