ASME Tank Head Plate 2:1 Elliptical Dished Ends Heads

ASME Tank Head Plate 2:1 Elliptical Dished Ends Heads

The Elliptical head is the most common type of heads. It can be seen in various equipment such as pressure vessels, storage tanks, heat exchangers, Planatery Mixer Machine etc. It has relatively high pressure tolerance and low molding difficulty.

Specification

Elliptical head:

Elliptical head (also called hemispherical tank heads or hemispherical dish ends) is widely applied to make pressure tanks to storage liquids and gases. The hemispherical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. Hemispherical is the ideal shape for development of hemispherical dish end, because the pressure in the vessel is divided equally across the surface of the head. The radius (Ri) of the head equals the radius of the cylindrical part of the vessel. This type of hemispherical tank heads or hemispherical dish ends are made in most popular sizes and thicknesses.

The stainless tank head is one of the key pressure-bearing components and core structures of a planetary mixer.  It is not only an important part of the pot body but also a crucial element in ensuring the safe, efficient, and stable operation of the equipment under mixing, heating/cooling, and vacuum conditions. Its design, materials, and manufacturing process directly affect the overall performance, service life, and hygienic safety standards of the product.

Manufacturer Equipment:

Our Manufacturing Process

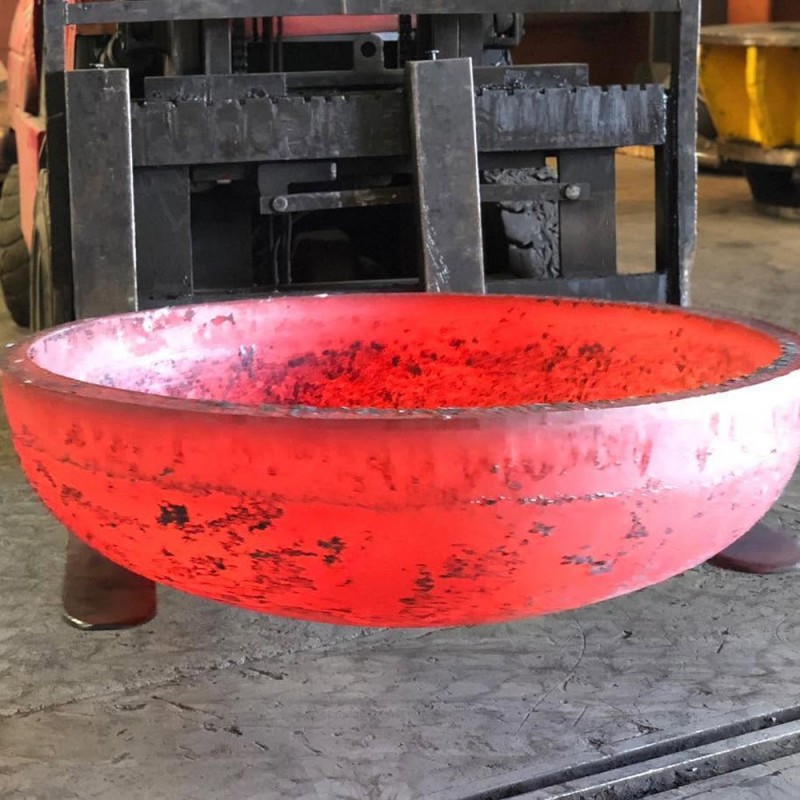

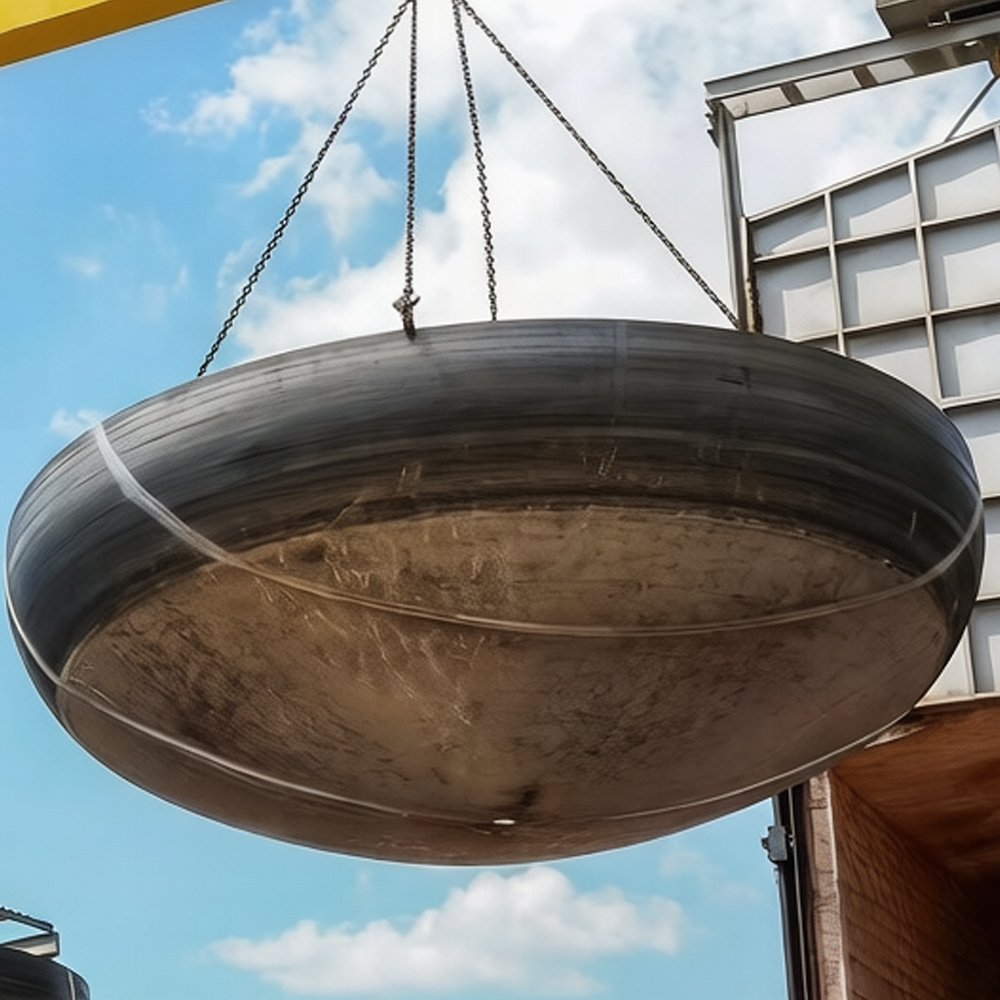

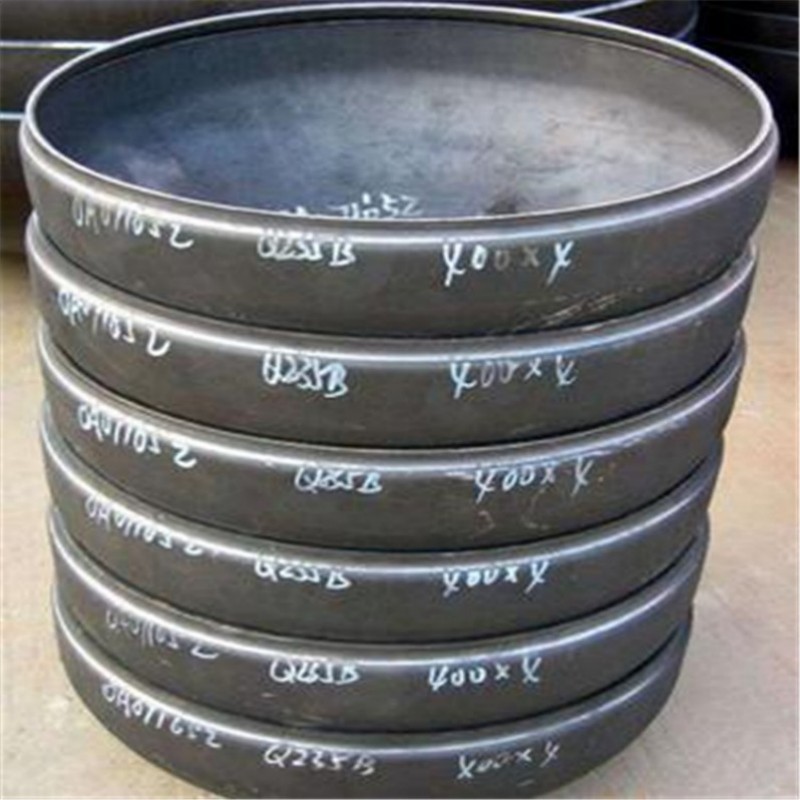

Product Image

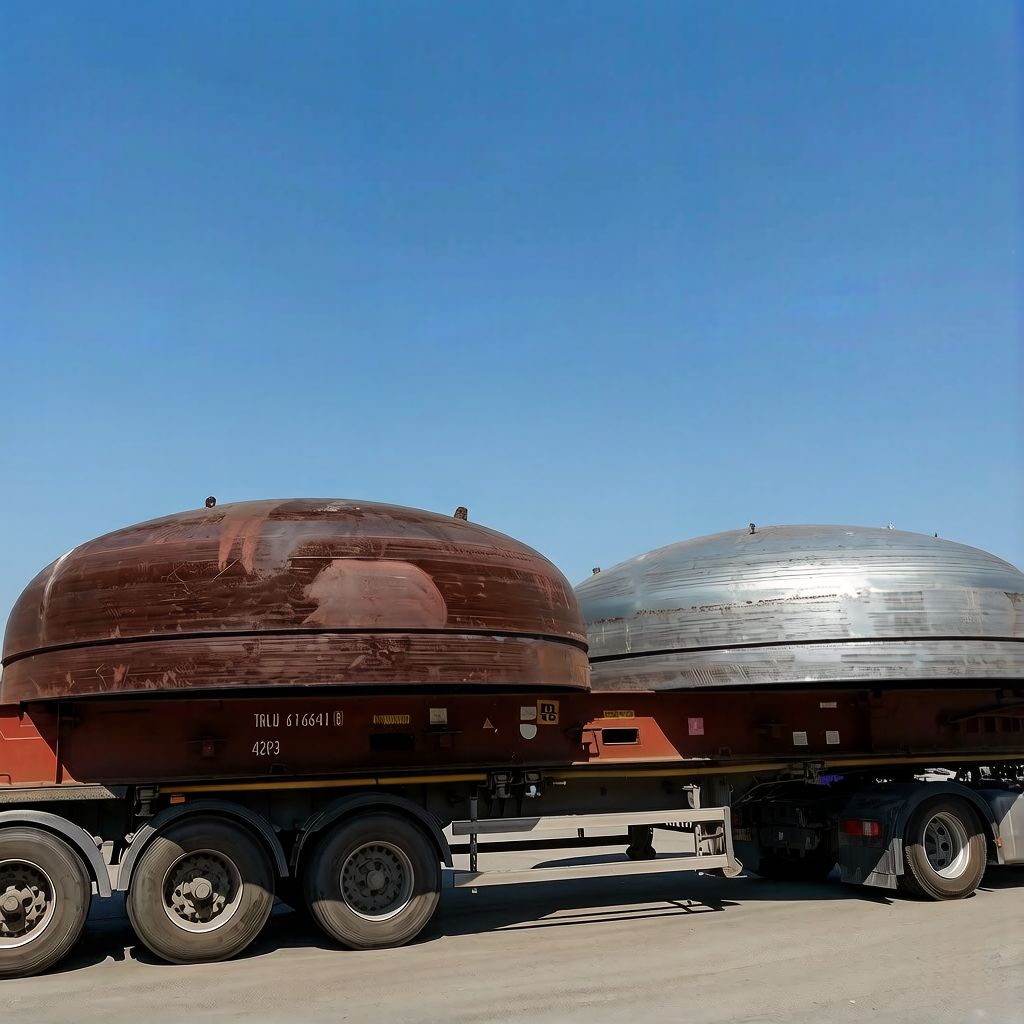

Packing & Delivery

Some Client Visiting and Dish Head Inquiry

Company Profile

Shandong Meihuayuan Industry Co.,Ltd, a premier metal products manufacturing facility dedicated to delivering top-quality solutions for a diverse range of industries. The company can manufacture oval, dish, hemispherical, spherical (no straight edges), conical, pipe caps, expansion joints, flat-bottomed heads and various materials with diameters from 25mm to 11000mm and thicknesses from 1.0mm to 80mm. Special material and special-shaped head. The products are sold all over the worlds and are widely used in petrochemical,electric power, energy, machinery, pharmaceutical, food, environmental protection, water treatment and other industries.

FAQ:

Q: What information should I provide when making an inquiry?

Q: Can you provide custom edge preparation (beveling) for tank end caps?

A:Absolutely. We provide professional edge preparation and beveling services (such as V-type, X-type, or U-type bevels) based on your welding requirements. Custom holes, polishing, and surface treatments for tank end caps are also available.
